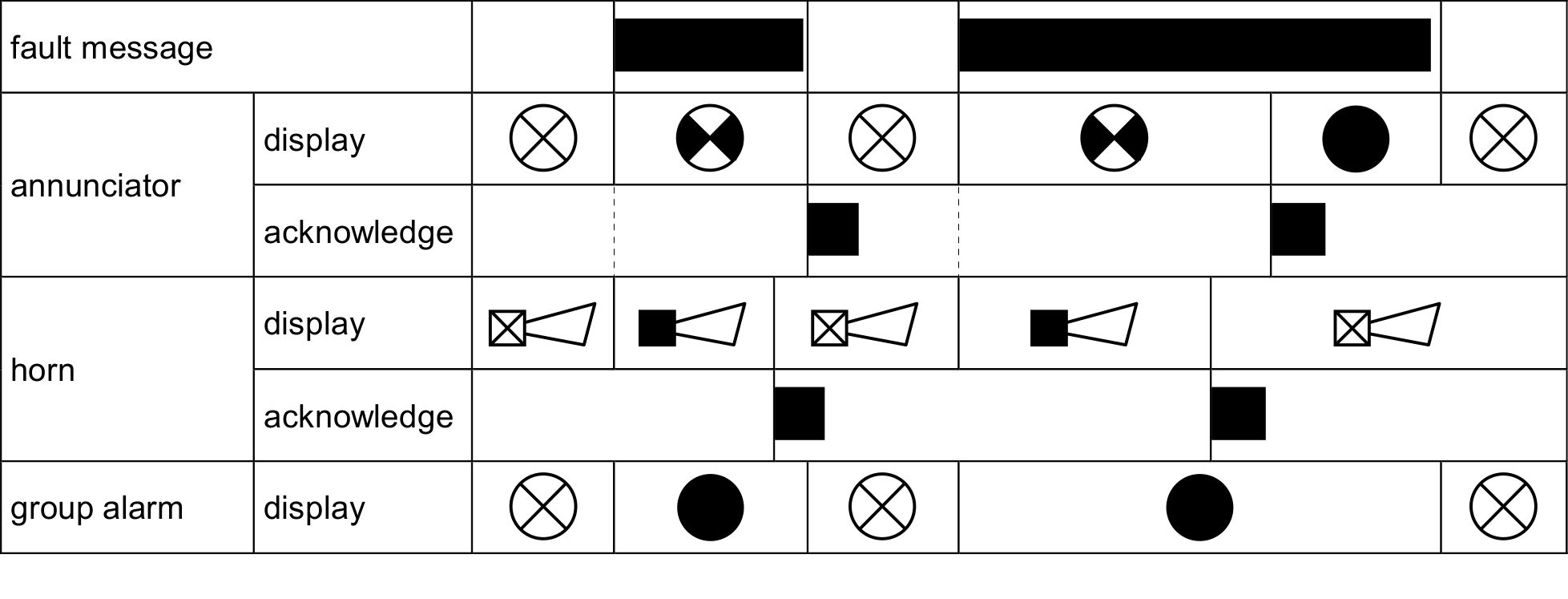

Level 3

Standard function
according to ISA-18.1 Seq. A /
DIN 19235 4.1.2.1

acknowledgeable flashing fault messages
group alarm
new-value horn alarm
LED display with lamps-test

Front-mounted

FSB-P USB:

to the data sheet

8-48 flashing alarm annunciator
LED display, inscribable,
can be parameterized via USB

96 / 192 x 85mm

Front-mounted

FSB 24/16-24-P USB:

to the data sheet

16-24 signal inputs,
LED display, inscribable,
can be parameterized via USB


144 x 96 x 85mm

Front-mounted

FSB 24/16-24-P USB REDUNDANT:

to the data sheet

16-24 signal inputs,
redundant power supplies, watchdog,
LED display, inscribable,
can be parameterized via USB
144 x 96 x 85mm

Front-mounted

FSB 8/12/24-BSK

to the data sheet

with 16-48 LEDs for
8-24 fire damper signal inputs
LED display inscribable,
LED-test
can be parameterized via USB
96 / 192 x 96 x 85mm

Front-mounted

FSB 16-P USB-OUTR:

to the data sheet

16 signal inputs,
LED display, inscribable,
can be parameterized via USB
with additional relay output module

96 x 96 x 85mm + 200 x 100 x 60mm

Front-mounted

ME 8/16/24-P logic:

to the product series

8/16/24 signal inputs,
5 colors RGB LED display, inscribable, resolution ≥1ms,
multifunctional parameterizable,
bus-capable, IEC 61850,
outputs: relay or opto-mos ≥1ms
72 / 144 x 144 x 160mm

Front-mounted

WindowsAnnunciator (WA):

to the product series

40-200 signal inputs
5 colors RGB LED light field technology, inscribable,
resolution ≥10ms,
multifunctional parameterizable (USB+NFC), web server, bus-capable, IEC 61850, relay outputs,
288 x 144 x 120mm

DIN rail

SVE 8:

to the data sheet

8- 80 signal inputs, snap-on module for distributor installation,
screw-type terminals/ plug connection,
for external signal lamps,
internal LED display
100 x 75 x 55mm

19" card technology

ZR-series:

to the data sheet

max. 246 Meldungen
plug-in cards in eurocard format
for  19“ rack,
for external signal lamps,
LED display, inscribable

Wall-mounted

CC24plus LC:

to the data sheet

        Replaced CC 8 / 16
24 signal inputs, LED display red,
first- or new value warnings
two flashing frequencies
(ISA-18.1/DIN 19235)
multifunctional parameterizable,
wall-mounted housing IP 52
230 x 200 x 100mm

Wall-mounted

CC24plus:

to the data sheet

24 signal inputs, 5 colors RGB LED display, two flashing frequencies
with UPS and telephone dialer,
multifunctional parameterizable,
wall-mounted housing IP 52
230 x 200 x 100mm
