Relay modules

19" plug-in cards

Data sheet as PDF

Type designation:

RB../..
Relay modules for:
electrical isolation
voltage conversion
contact multiplication
switching power circuit

System features:

  • Plug-in cards in eurocard format 100 x 160 mm, 4 and 8M
  • Each card 4-12 relays, each with 2-3 potential-free normally open contact or change-over contact
  • Switching power max. 3A, 250V AC
  • Available with LED - display and aluminium front paneland lamps-test and group message
  • EMC-values: UNITRO-Standard in accordance with EN 61000

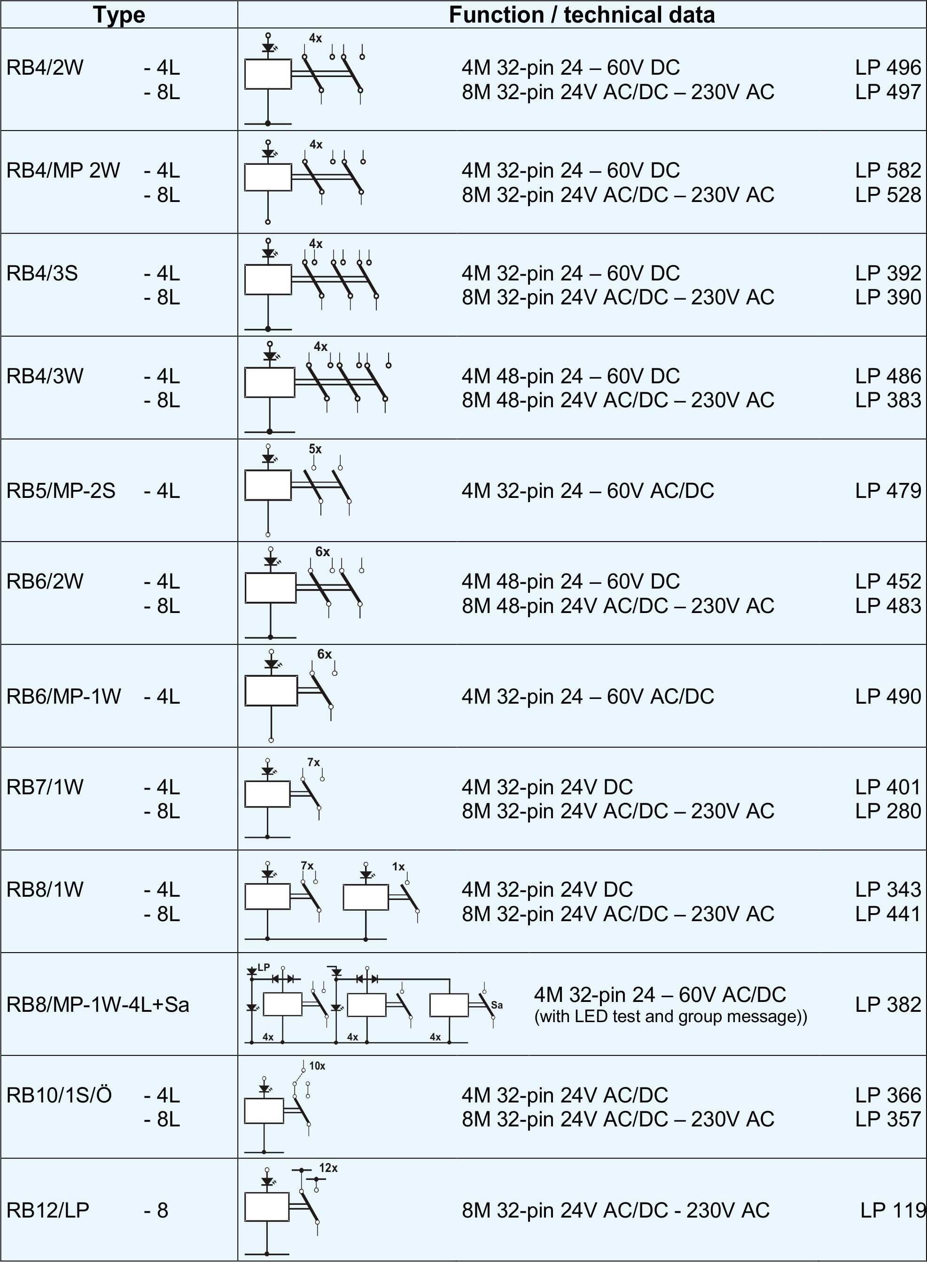

Overview Series Types

subject to change
